Parts Gallery

Parts Gallery

Here are some examples of parts and applications that utilize Phelinger tooling. We specialize in precision dies that punch and notch flat material, formed parts, aluminum extrusions, tube & pipe.

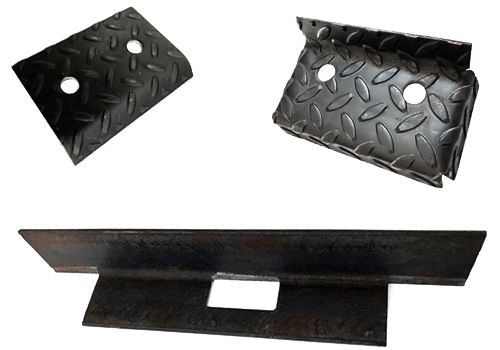

Heavy Duty Part Applications

Punch & Notch Tread Plate and Angle Iron

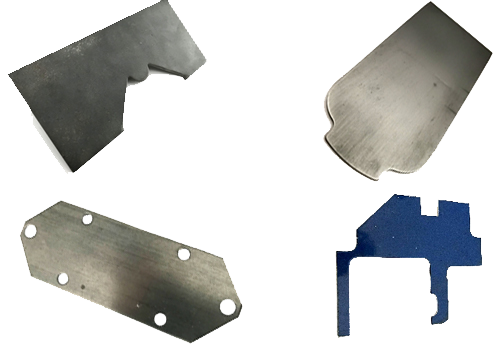

Medium Duty Part Applications

Custom Edge & End Notching, Hole Punching
and Corner Rounding

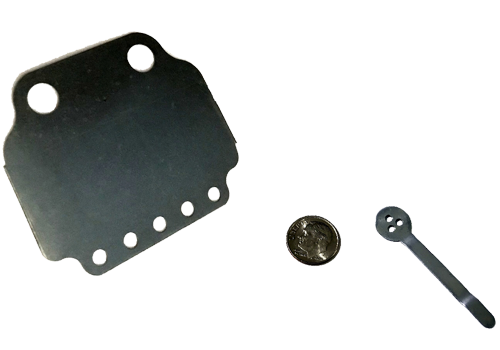

Light Duty Part Applications

Sheet Metal Notching, Hole Punching
and Part Blanking

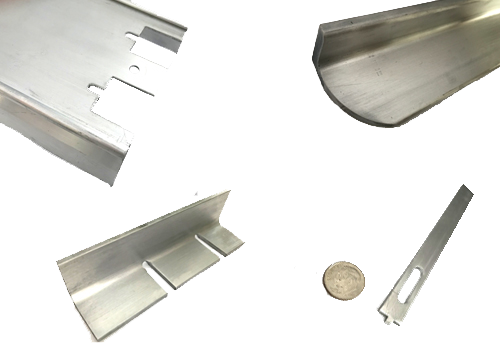

Aluminum Extrusion Applications

End Notching, Slitting & Hole Punching

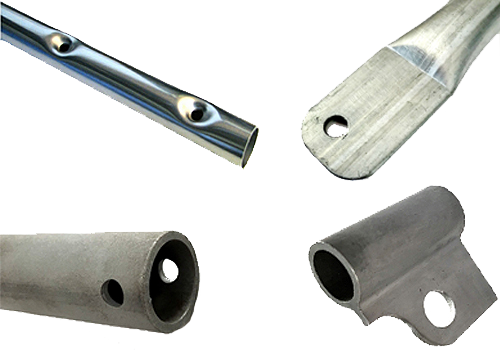

Tube Punch & Forming Applications

Dimple and Dimple-free Holes In Tube & Pipe

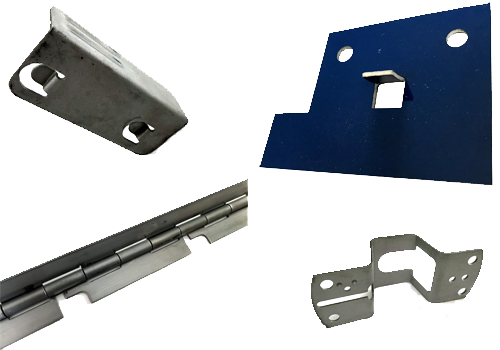

Lancing, Forming and Other Part Applications

Cluster hole punching patterns and formed part punching
